Ecler

DN44BOB DANTE Digital Audio Interface

Sale price $999.00 Regular price $1,597.00

DANTE Digital Audio Interface

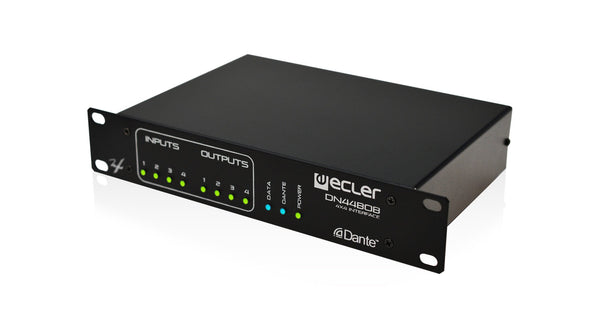

ECLER DN44BOB is a 4 inputs and 4 outputs DANTE (Audio Over IP) Break Out Box. It allows to convert 4 analogue audio signals into 4 DANTE channels and send them into an Ethernet LAN, as well as to take 4 DANTE channels from the Ethernet network and convert them to analogue audio signals. It includes 4 GPI control ports (0-10VDC) and 4 GPO control ports (NO/NC relays). Can be used together with EclerNet DANTE ready products or as a stand-alone DANTE interface, together with any audio device including analogue audio inputs and/or outputs.
Key Features
• Ethernet, interface, DANTE audio and EclerNet compatible
• 4 MIC/LINE balanced inputs, with Phantom Power and 3 sensitivity levels, Euroblock connector
• 4 balanced LINE Outputs, Euroblock connector
• 4 GPI ports (0-10VDC)
• 4 GPO ports, NO / NC


Applications

• Audio Over IP transmission, using standard Ethernet networks
• Integration in EclerNet audio installations
• Analogue audio devices conversion into DANTE Digital Audio transmission
• Installations requiring remote total control
• Installations requiring remote supervision, diagnostic and
adjustment via Internet
Audio Specs 24bit AKM AD/DA converter, 32 bit DSP processor

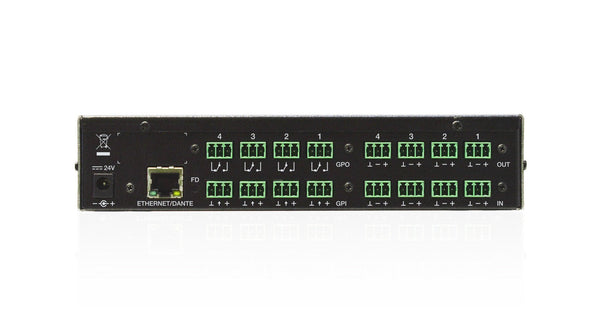

Communication Interfaces 1 x Ethernet (DANTE audio and EclerNet compatible)
Inputs 4 x MIC/LINE balanced inputs (Euroblock)

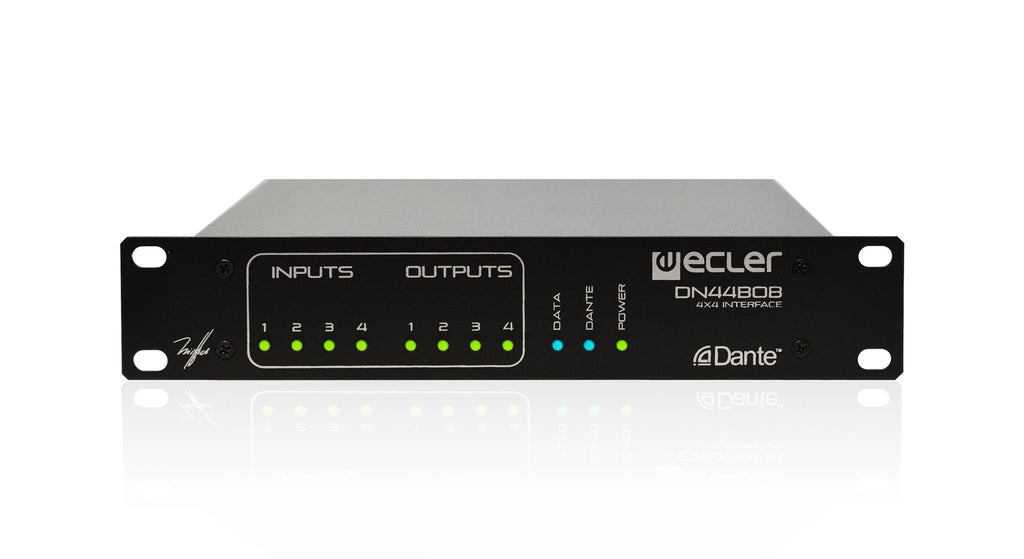

LED indicators POWER, DATA, DANTE
Outputs 4 x Balanced outputs (Euroblock)
Remote control 4 x GPI Ports + 4 GPO ports
Dimensions 241 x 44 x 152 mm
Weight 1.1 kg
